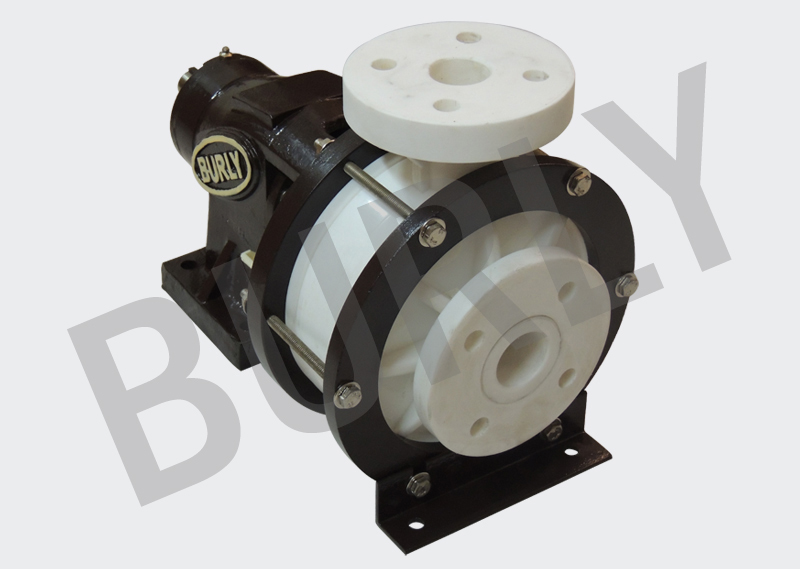

| PCX-130 Pump |
These pumps are recommended for :-
- It is recommended the intermediate duty for running 8 to 10 hours per day.
- Occupies Less Space, Easy to Handle & Economical.
- Standard Quality Pumps Supplied with Teflon Bellow Mechanical Seals and Ceramic Sleeve.
- Suggested for Handling and Transfer of Acid and Alkalies.
- Scrubbing of Corrosive and Aggressive Chemicals. i.e. HCL, H2So4 (Diluted), HNo3, NaoH, H3Po4, NaCl etc.
- Electro Plating Solution Circulation & Etching Solution for Electronic Circuit Board.
|
|
 |
|
| Sealing Options: |
- Externally Mounted Mechanical Seal
- Gland Packing
|
| Performance Data: |
| Model |
Suction
mm |
Delivery
mm |
Imp.Dia.
mm |
H.P. |
RPM |
Head in Mtr. / Cap. in M3 / hr. |
| PCX ™130 |
40 |
40 |
145 |
3 |
2900 |
24 |
22 |
20 |
18 |
15 |
10 |
| 00 |
03 |
05 |
10 |
20 |
24 |
|
| |
NOTE: Performance Applicable to Liquid of Specific Gravity 1 and Viscosity as of Water. |
| |
| |
|
|
