PP Monoblock Pumps

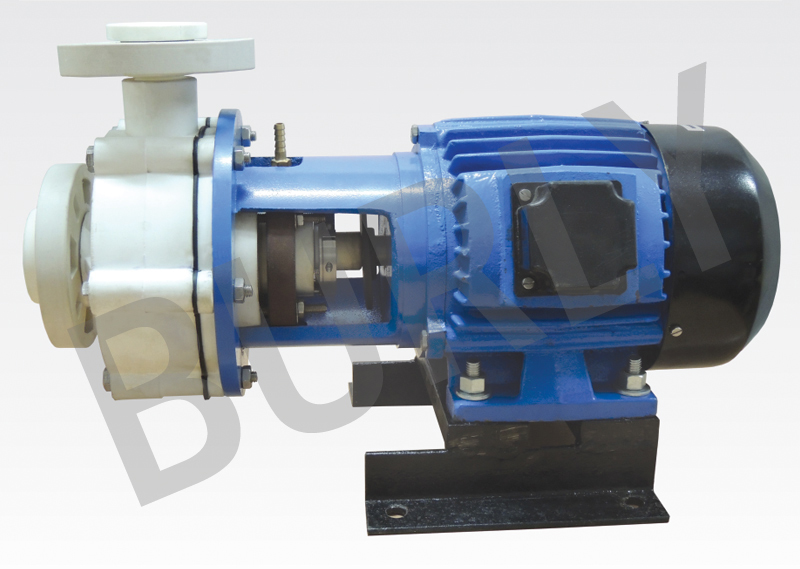

P.P. Monoblock Pump With Mechanical Seal or Gland Type

We offer our customers a directly installed on the electric motor shaft Monoblock type P.P pump which are small and sturdy in design, Economical and highly efficient, Easy to use and needs very less maintainence.

The pumps are specially used for negative suction and are very effective for handling slurry or material with particles.

Also Ideal for transfer of corrosive liquid, chemical transfer & filtration, pharmaceutical products, food and dairy products etc. These pumps are specially designed with high capacity and discharge.

The pumps coupled with good quality of NFLP Electric motor with high quality Stamping which results in to great performance.

Applications :
Fumes scrubbing - Re circulation Process - Photographic Processing - Breweries - Perfumeries - Photographic - Tanneries

Sealing Options:
  • Externally Mounted Mechanical Seal
  • Gland Packing

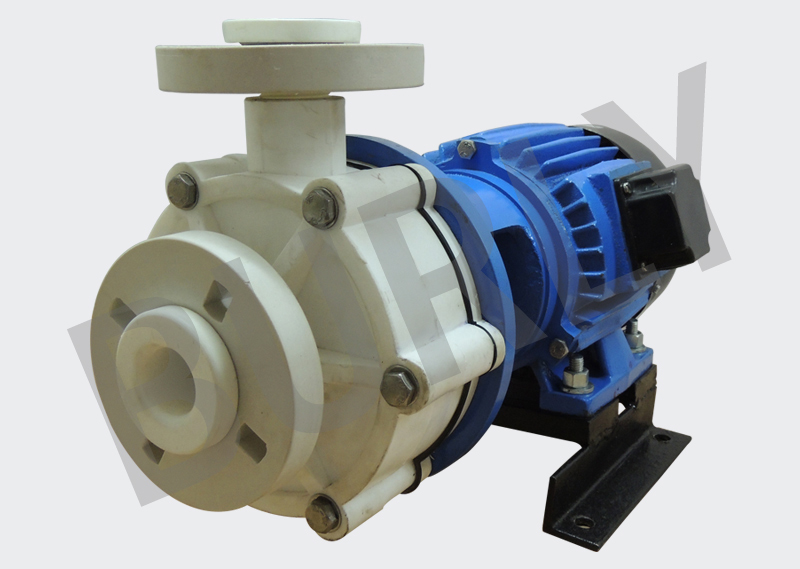

PCX-MB-100 Pump PCX-MB-120 Pump

Performance Data:
Model Suction
mm
Delivery
mm
Imp.Dia.
mm
H.P. RPM Head in Mtr. / Cap. in M3 / hr.
PCX
100-MB
25 25 100 1 2900 13 12 11 10 08 07
00 03 05 06 09 11
PCX
120-MB
40 40 120 2 2900 18 16 15 12 10 -
00 08 12 20 24 -


NOTE: Performance Applicable to Liquid of Specific Gravity 1 and Viscosity as of Water.
